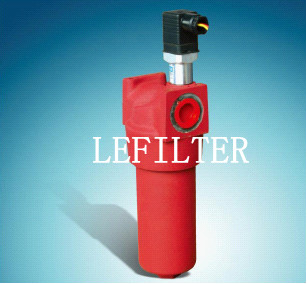

LPFBN/HC60DE10D1X LPF Low pressure line filter
Release date:2012-11-12 Author:LEFILTER
1.MODEL COLD
LPF BN/HC 60 D E 10 D 1 X
(1) (2) (3) (4) (5) (6) (7) (8) (9)
Detailed Explanation :
(1)LPF: The form of filter
(2)BN/HC : Material of filter element BN3HC , BH3HC,W/HC
(3)280 : Shell material Cast iron : 60,110,140,160,240,280
top cover : Carbon steel
Cylinder : Carbon steel (50bar)
(4)D : Working pressure D=25bar , G=50bar
(5)E: Connection form / connection size
(6)10：Filtration precision (μm)
BN3HC , BH3HC: 3，5，10，20
W/HC : 25，50，100，200
(7) D :Form of pollution sender device
A:Signaling pollution-free, with steel plug
B: With visual pollution indicator
C: Electrical sender
D: Visual signaling or Electrical sender
(8)1: standard connector
(9)X : Latest version
2.Matching the filter description
Specification : 60,110,140,160,240,280
Form : D
Filtration precision (μm) : BN3HC , BH3HC: 3，5，10，20
W/HC : 25，50，100，200
Filter material : BN3HC, BH3HC , W/HC
